Used 2019 Zoomlion ZLJ5440THBBE 56m Truck-Mounted Concrete Pump with Z-Shape 5-Section Folding Boom and 365° Continuous Rotation

For Sale: 2019 Zhonglian ZLJ5440THBBE 56m Truck-Mounted Concrete Pump (Mercedes-Benz Chassis)

Overview:
We are offering a well-maintained 2019 Zhonglian (Zoomlion) ZLJ5440THBBE truck-mounted concrete pump with a 56-meter boom. Mounted on a reliable Mercedes-Benz chassis, this pump has recorded only 1,236 working hours, indicating very light use for its age. It has been professionally serviced and is in excellent working condition, ready for immediate inspection and deployment on your next project.

Key Details:

• Manufacturer: Zoomlion (中联重科)

• Model: ZLJ5440THBBE

• Year of Manufacture: 2019

• Working Hours: 1,236 hours

• Condition: Excellent, Low Hours

• Availability: Viewing Available Upon Request

Detailed Technical Parameters:

1. Pumping Unit:

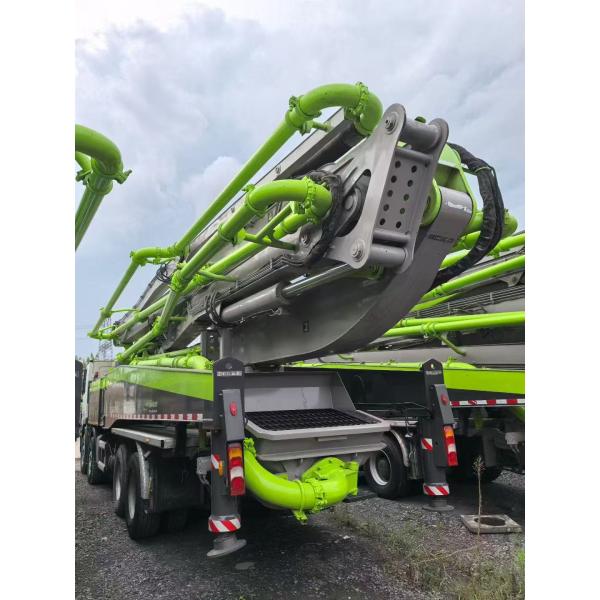

• Boom System: Z-Shape 5-Section Folding Boom

• Boom Reach: 56 meters (approx. 184 feet)

• Vertical Reach: 53.2 meters

• Horizontal Reach: 48.7 meters

• Boom Rotation: 365° continuous rotation

• Pump Theory: Dual Cylinder, Piston (S-Valve)

• Theoretical Concrete Output: Up to 180 m³/h

• Max Theoretical Pressure: 8.7 / 12 MPa (dependent on output mode)

• Cylinder Diameter x Stroke: Φ260 × 2100 mm

• Delivery Pipe Diameter: Φ125 mm

2. Chassis:

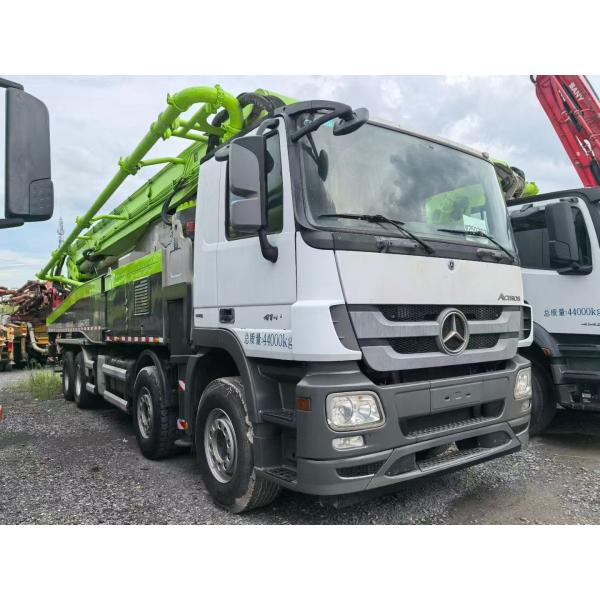

• Chassis Model: Mercedes-Benz

• Chassis Type: 8x4 (Four Axles)

• Engine Model: Mercedes-Benz OM 460 LA (Typical for this model)

• Engine Power: Approximately 420 hp / 315 kW (Confirm specific chassis engine rating)

• Emissions Standard: China IV / Euro IV (Equivalent)

• Fuel Tank Capacity: ~400 Liters

3. Hydraulic System:

• Type: Open Loop System

• Main Pump: Variable displacement piston pumps

• Hydraulic Oil Tank Capacity: ~700 Liters

4. Operational Parameters:

• Max Concrete Pressure: 87 bar

• Recommended Slump: 12 ~ 23 cm

• Max Aggregate Size: 40 mm

• Hopper Capacity: ~0.7 m³

• Water Tank Capacity: ~600 Liters (for cleaning)

5. Dimensions & Weights:

• Overall Length: ~14,000 mm

• Overall Width: ~2,500 mm

• Overall Height: ~3,980 mm

• Total Weight: ~44,000 kg (Approx. 44 tonnes - as per model number 5440)

Features:

• Advanced control system for precise boom and pump operation.

• Emergency safety features and boom stabilization.

• Automatic boom deployment and folding sequences.

• Comfortable operator cabin with clear visibility and control interfaces.

• Low working hours ensure significant remaining lifespan.

This 2019 Zoomlion 56m pump truck represents an excellent opportunity to acquire a high-specification machine with minimal usage at a competitive price. The reliable Mercedes-Benz chassis ensures strong mobility and performance.

Contact us now to arrange a viewing and see this exceptional machine in person.
