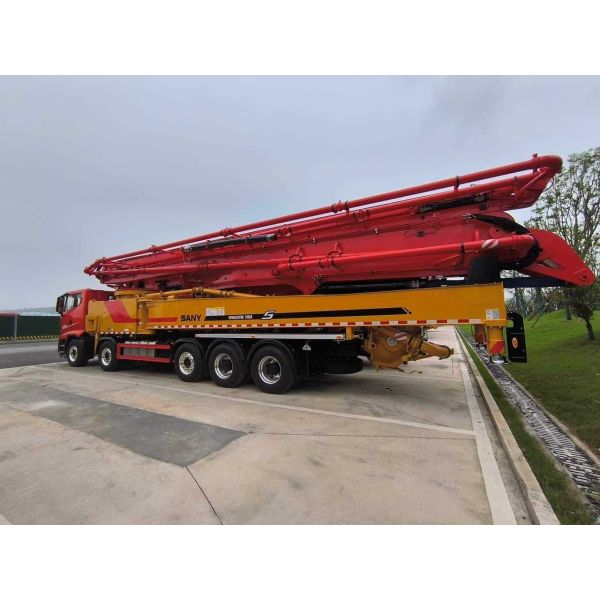

Sany 71M Concrete Pump Truck Hydraulic Beton Pump Truck New

SANY SYM5552THB 710S 71m Concrete Pump Truck – New, Ready for Inspection

The SANY SYM5552THB 710S is a state-of-the-art 71-meter concrete pump truck, engineered for high-efficiency concrete placement in large-scale construction projects. Built on a self-developed SANY chassis, this model combines robust performance, advanced pumping technology, and superior maneuverability.

Key Specifications:

• Boom System:

  • Boom Length: 71 meters (5-section, Z-type folding)

  • Maximum Vertical Reach: 65.5m | Horizontal Reach: 50.2m

  • Pumping Pressure: 13.5 MPa | Theoretical Output: 170 m³/h

  • Slewing Angle: ±270° (full rotation)

• Pumping System:

  • Cylinder Diameter × Stroke: Φ260 × 2100mm

  • Delivery Pipe Diameter: Φ125mm (standard)

  • Max Aggregate Size: 40mm (recommended: ≤30mm for optimal flow)

  • Concrete Slump Range: 120–230mm

• Chassis & Powertrain:

  • Chassis Model: SANY SYM5552THB (self-manufactured)

  • Engine: Euro III-compliant diesel, 420 HP

  • Transmission: 10-speed manual

  • Axle Configuration: 10×6 (10-wheel drive, 6 axles)

  • Max Traveling Speed: 80 km/h

• Advanced Features:

  • Intelligent Control: SANY EPC (Electronic Pump Control) system for precise operation.

  • Anti-Sway Technology: Enhances stability during boom extension.

  • Emergency Safety: Automatic pressure relief and overload protection.

  • Fuel Efficiency: Optimized hydraulic system reduces energy consumption.

• Dimensions & Weight:

  • Overall Length × Width × Height: 15.2m × 2.55m × 3.98m

  • Gross Vehicle Weight (GVW): 55,000 kg

This brand-new SANY 71m pump truck is immediately available for inspection and delivery, offering unmatched reliability for high-rise buildings, bridges, and industrial projects.

Contact us today to arrange a viewing!
