Brand Name : SANY
Place of Origin : China
MOQ : 1
Price : USD8000-USD60000 EXW
Payment Terms : L/C,T/T
Delivery Time : in one week
Packaging Details : Bulk Cargo Shipping
Model : SY5143THBE
Cylinder Diameter x Stroke : Φ230mm x 1600mm
Dimension(L*W*H) : 9240*2500*3100mm
Hopper Capacity : 0.6m³
| Specification | Details |
| Model | SY5143THBE |
| Maximum Delivery Volume | 118m³/h (Low Pressure) / 66m³/h (High Pressure) |
| Concrete Pressure | 13MPa (Low Pressure) / 25MPa (High Pressure) |
| Pumping Frequency | 30 cycles/min (Low Pressure) / 17 cycles/min (High Pressure) |
| Cylinder Diameter x Stroke | Φ230mm x 1600mm |
| Chassis | SANY SYM1161T1E Chassis, 44-ton capacity, compliant with China V standards |
| Engine | Dual-Power System: 200KW (Chassis) + 131KW (Pump) |
| Dimensions | 9240mm (L) x 2500mm (W) x 3040mm (H) |
| Axle Distance | 4700mm |
| Dimension(L*W*H) | 9240*2500*3100mm |
| Total Weight | 14,300kg |
| Hopper Capacity | 0.6m³ |
| Applications | Bridges, tunnels, energy infrastructure, urban construction |
✅ Dual-Power Efficiency: Combines chassis and pump power (200KW + 131KW) for uninterrupted performance in remote or power-limited sites.
✅ High-Pressure Precision: Delivers 25MPa pressure for demanding projects like high-rise buildings and deep foundations.
✅ Robust SANY Chassis: Built for stability on rugged terrains; China V / Euro V compliance.
✅ Versatile Applications: Ideal for energy plants, tunnel linings, and urban mega-structures.







1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .
2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.
3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.
4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.
5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
|
|

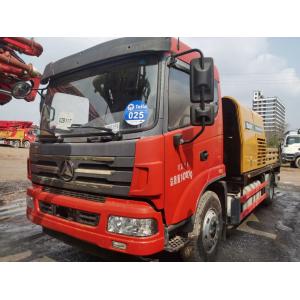

Used Sany Truck Mouted Concrete Pump Contruction Machinery SY5143THBE Images |
